Railroad gantry crane

Railroad gantry cranes are indispensable in modern rail infrastructure, enabling the efficient handling of heavy cargo, containers, and equipment across rail yards, ports, and industrial hubs. At SEVENCRANE, we specialize in designing and manufacturing high-performance railroad gantry cranes that combine power, precision, and adaptability. Our cranes are engineered to meet the rigorous demands of rail logistics, ensuring seamless operations even in the most challenging environments. Whether you’re managing freight terminals or maintenance facilities, SEVENCRANE delivers solutions that prioritize safety, durability, and operational efficiency.

A railroad gantry crane’s robust structure is key to its performance. Here’s how SEVENCRANE optimizes each component:

• Main Girder: Fabricated from high-strength steel, our girders withstand heavy loads and minimize deflection for precise load positioning.
• Support Legs: Adjustable legs accommodate varying rail gauges and ground conditions, ensuring stability on uneven terrain.
• Travel Mechanism: Equipped with anti-derailment features, our rail-mounted wheels guarantee smooth movement along tracks.
• Hoisting System: Advanced electric or hydraulic systems provide precise control over lifting speeds and capacities (up to 500 tons).
• Electrical & Control Systems: IoT-enabled diagnostics and user-friendly interfaces enhance safety and reduce downtime.

SEVENCRANE’s designs incorporate corrosion-resistant materials and modular components, extending service life and simplifying maintenance.

No two rail operations are identical. SEVENCRANE’s engineers collaborate closely with clients to develop custom railroad gantry cranes tailored to specific needs:

• Span & Height: Adjustable spans (10–50 meters) and lift heights to clear railcars or stacked containers.
• Environment-Specific Upgrades: Weatherproofing for extreme climates, explosion-proof motors for hazardous zones, or noise reduction for urban areas.
• Automation Integration: Optional remote control, RFID tracking, or AI-driven load management systems.

From compact rail yard cranes to massive intermodal handlers, our bespoke designs ensure optimal workflow integration.

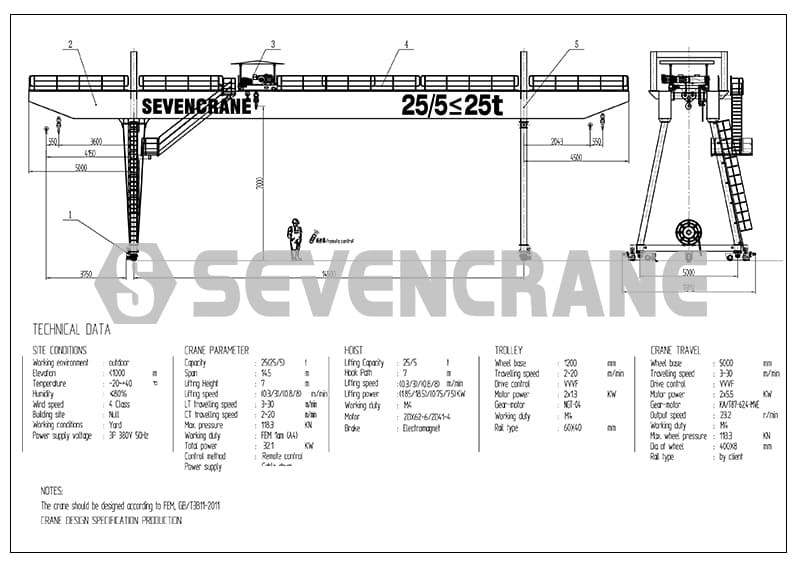

Detailed Parameters:

Lifting capacity: 25/5T
Span: 24m
Lifting height: 7m
Operating distance: 140m
Voltage: 380V, 50HZ, 3Phase
Customer type: middleman

Project Background

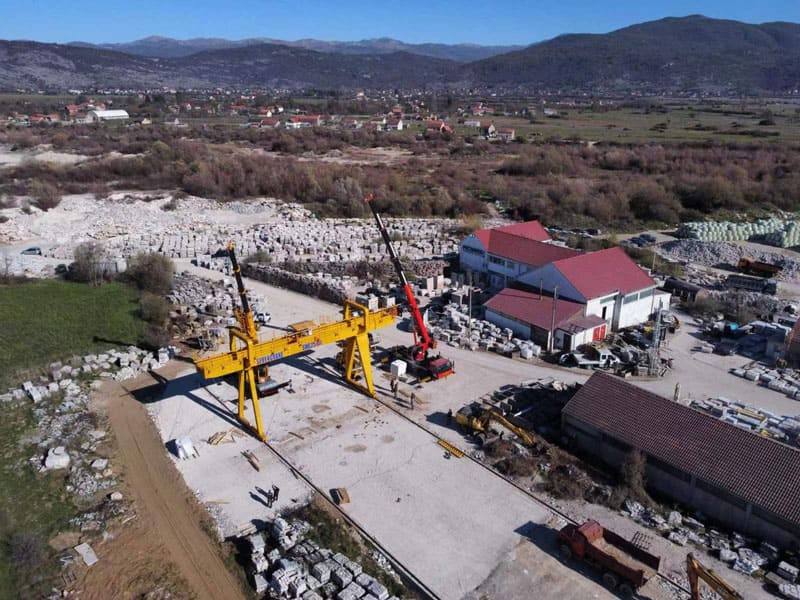

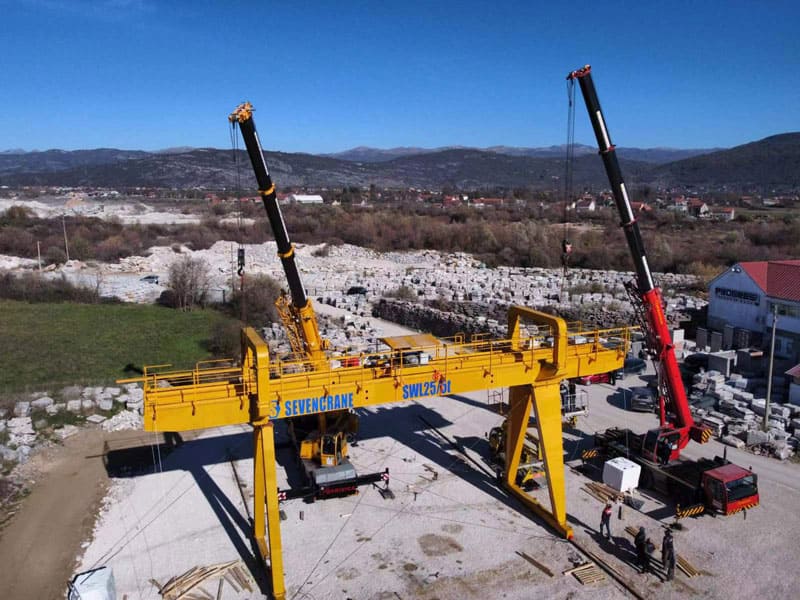

A quarry operator in Montenegro sought a robust material handling solution to streamline operations at their site. After evaluating multiple suppliers, they chose SEVENCRANE to deliver a 25/5T single girder gantry crane tailored to their unique needs.

SEVENCRANE’s Customized Solution

Design Adaptation:
Initially proposed a dual-trolley system, but after cost-benefit analysis, SEVENCRANE’s engineers optimized the design to a main/auxiliary hook configuration, reducing upfront costs while maintaining operational efficiency.

Technical Collaboration:

• Conducted detailed site assessments to finalize the foundation plan, ensuring structural stability on uneven terrain.
• Provided 24/7 remote support during the client’s delayed installation phase (1 year after order confirmation).

Product Highlights:

• 25/5T Capacity: Ideal for handling heavy quarry materials.
• Durable Construction: Weather-resistant materials and reinforced girders for harsh outdoor conditions.
• Safety Compliance: Equipped with overload protection and anti-sway technology.

Outcome & Client Feedback

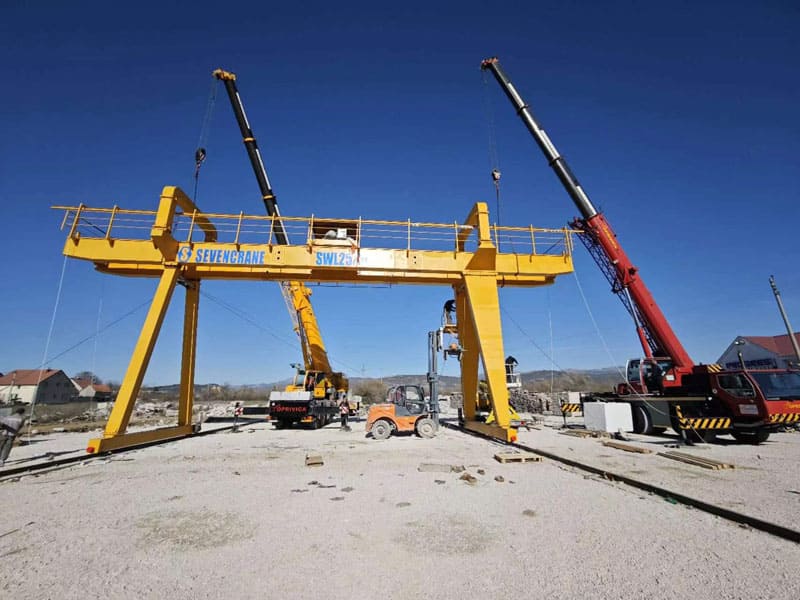

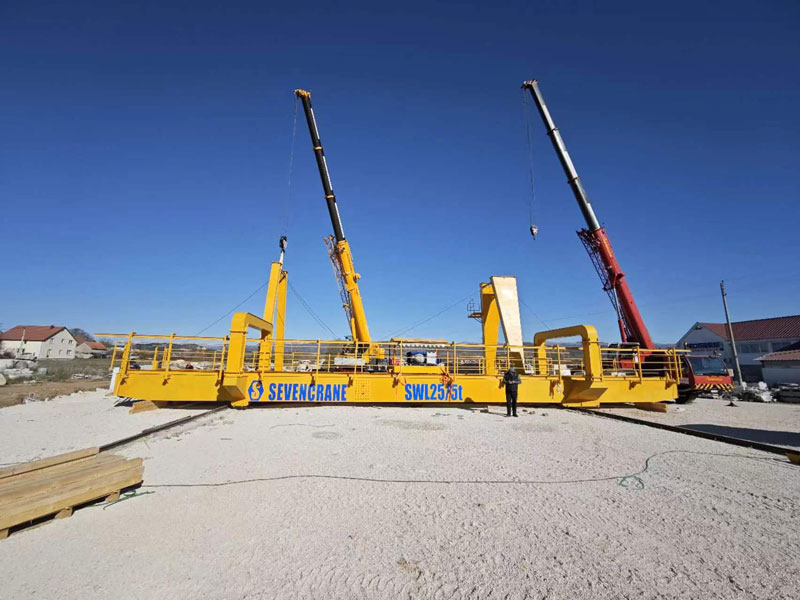

• Successful Installation: The crane was fully installed and tested, with the client sharing positive feedback on its performance and durability.
• Operational Efficiency: The quarry now enjoys faster material handling, reduced downtime, and improved safety.
• Client Testimonial: “SEVENCRANE’s team stood out with their professionalism. They listened to our needs, adapted the design to fit our budget, and supported us every step of the way. The crane performs flawlessly in our demanding environment.”

Contact SEVENCRANE Today!

Whether you need a standard or custom gantry crane, trust SEVENCRANE to deliver smarter lifting solutions. Request a quote or consultation to experience our engineering excellence firsthand.

SEVENCRANE – Lifting Your Business, Building Your Future.

This case study highlights SEVENCRANE’s ability to balance cost-efficiency with technical precision, while emphasizing long-term partnerships and client-centric problem-solving. The structure aligns with the brand’s focus on reliability, customization, and global reach.

Our client-centric approach ensures transparency and quality at every stage:

1. Consultation & Communication: Understand your operational challenges and goals.
2. Tailored Design: Engineers draft 3D models and simulations for approval.
3. Solution Finalization: Agree on specifications, timelines, and budgets.
4. Processing & Manufacturing: Precision fabrication using ISO-certified processes.
5. Packaging & Shipping: Disassembled components securely packed for global delivery.
6. Customer Acceptance: On-site inspection and performance testing.
7. Installation & Training: Expert technicians assemble the crane and train your team.
8. After-sales Service: 24/7 technical support, spare parts, and maintenance plans.

• Decades of Expertise: 30+ years in crane manufacturing, with a focus on railroad applications.
• Certified Quality: ISO 9001 compliance and CE, OSHA, and ANSI certifications.
• Global Reach: Successful projects in 50+ countries, supported by local service hubs.
• Innovation-Driven: R&D investments in energy-efficient and smart crane technologies.
• Lifetime Partnership: Comprehensive warranties and proactive after-sales care.

1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to our factory to make the inspections. Meanwhile, also support live factory view & crane inspection.
2Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What’s your warranty period?
A: 24 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C-hook, wire rope, drum, etc.
