Top running bridge crane

▶A top running bridge crane is one of the most commonly used overhead crane types, designed with a fixed rail system installed on top of each runway beam. This design allows for unrestricted lifting capacity, accommodating loads from 1 ton to over 500 tons, making it ideal for a wide range of industrial applications.

▶Top running bridge cranes are particularly well-suited for buildings with limited headroom, as their rail-mounted design provides extra lifting height compared to underhung cranes. They can be configured as single girder or double girder systems. Single girder designs use an under-hung trolley and hoist, offering a cost-effective solution for lighter loads, while double girder models feature a top running trolley and hoist, maximizing hook height and lifting capacity.

▶Since top running bridge cranes operate on rails mounted atop the runway beam, regular rail alignment inspections are essential to maintain smooth and efficient operation. With their high strength, durability, and adaptability, top running bridge cranes remain a preferred choice for facilities requiring heavy-duty lifting, extended spans, and efficient material handling.

Maximized Headroom and Lifting Height

Since the crane runs on top of the runway beams, it provides higher clearance beneath the bridge, making it ideal for lifting taller loads or operating in facilities with limited ceiling height.

Heavy-Duty Performance

Designed for demanding industrial applications, top running cranes handle heavier loads with ease. Their structure distributes weight across the top of the system, minimizing strain on individual components and ensuring long-term reliability.

Extended Span for Greater Coverage

Top running bridge cranes support longer spans between runway beams, allowing them to cover larger areas within a facility. This extended reach enhances operational flexibility and efficiency, making them well-suited for large-scale industrial spaces.

Superior Stability and Durability

Built on a strong, independent support structure, these cranes operate safely and efficiently without relying on the building’s framework. This enhanced stability and durability make them ideal for heavy-duty lifting in large industrial environments.

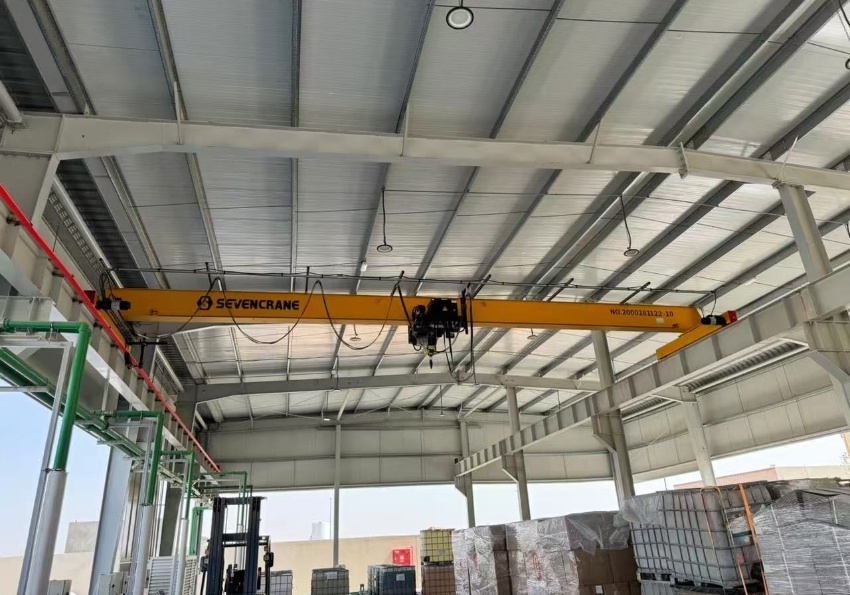

Single Girder Top Running

• Features: Equipped with a single bridge girder supported on end trucks. The hoist travels on the bottom flange of the girder.
• Capacity: Typically up to 25 tons.
• Applications: Warehouses, workshops, assembly lines, maintenance and repair facilities for lifting and moving small to moderate loads.

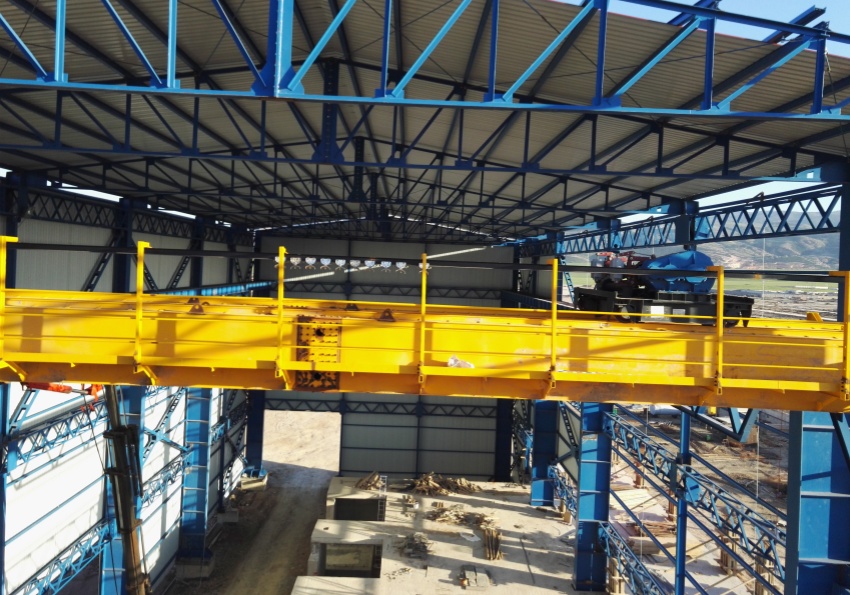

Double Girder Top Running

• Features: Equipped with two bridge girders, providing greater strength and stability. The hoist is mounted on a trolley running on tracks on top of the girders.
• Capacity: Up to 500 tons or more.
• Applications: Heavy manufacturing, steel mills, power plants, and large-scale industrial projects.

Structural Considerations

Load Capacity

Top-running cranes must be strong enough to safely lift the required loads. Double-beam cranes are particularly useful for heavy applications because of their greater load distribution and stability.

Crane design needs to consider dead load (the weight of the crane itself), live load (the weight of the material being lifted), and dynamic load (the forces generated during acceleration, deceleration, and sudden stops).

Support Columns and Track Beams

Top-running cranes often require separate support columns and track beams to ensure structural stability. If the existing building structure cannot meet the support needs of the crane, additional steel columns may need to be installed, which will affect the overall cost of the project.

Material Strength and Durability

Steel is the primary material for top-running cranes because of its high strength and fatigue resistance. The various components of the crane must be able to withstand the stresses of daily use, including heavy loads and dynamic forces.

Space Considerations

Operating Space

The crane must have sufficient space for horizontal and vertical movement to ensure unobstructed operation. Factors that need to be evaluated include track length, space for end stops and buffer zones, and the layout of aisles and work areas.

Load Handling and Positioning

Space planning should take into account the size and shape of the load being lifted, the crane’s swing radius and travel path. Accurate load positioning is especially important in work areas where space is limited.

Product Parameters:

Type: SNHD Single Girder Overhead Crane

Lifting capacity: 20ton

Span: 20m

Lifting height: 12m

Lifting speed: 0.67/4 m/min

Traveling speed: 2-20m/min (for the main crane), 2-20m/min (for the trolley)

Work Duty: A5

Operating mode: Remote+Pendent control

◣On August 6, 2024, we welcomed a first-time customer from Mexico, a boss in the construction industry. This customer was looking for suitable lifting equipment for the construction of a new factory, and the initial demand was focused on aerial work platforms. However, during the communication with us, we learned that the customer’s company not only needed an aerial work platform, but also urgently needed an overhead crane to meet the heavy material handling needs of factory construction.

◣After a detailed demand analysis, we provided the customer with a complete set of overhead crane solutions: a 20-ton single girder overhead crane with a span of 20 meters and a lifting height of 12 meters. The customer was very satisfied with our solution and confirmed the initial quotation on August 8, 2025. Subsequently, the two parties finally confirmed the purchase order (PI) on August 10, 2025, and selected the T/T payment method and CIF delivery terms. The products will depart from Qingdao Port and arrive at Manzanillo Port in Mexico.

◣The success of this cooperation is due to our accurate grasp of customer needs and the provision of professional solutions. The customer’s feedback shows that we not only met their needs for bridge cranes, but also provided strong support for their factory construction. In the future, we look forward to continuing to maintain close cooperation with this Mexican customer and exploring more cooperation opportunities together.
