Warehouse Gantry Crane

Warehouse gantry crane is applied outside warehouse or railway sideways to do common lifting and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment, strong lifting winch. The frame adopts box-type welding mechanism. Crane travelling mechanism adopts separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. There are different capacities of gantry crane for your choice according to different use.

Warehouse gantry crane is a standard  mobile gantry crane consist of a two legged A-frame support the trolley adopt flexible cable conductive, the gantry adopt slide wire or flexible cable conductive.

It is ideal for outdoor applications where lifting facilities are provided, without the cost of a building or any supporting steelwork.

A warehouse gantry crane is a versatile lifting solution designed for indoor and outdoor warehouse applications. Understanding its components ensures optimal performance and longevity.

Main Girder:

• The primary load-bearing structure, typically made of high-strength steel.
• Designed to resist bending and torsional forces during lifting operations.

End Trucks:

• House the wheels and drive mechanisms for horizontal movement.
• Rubber tires provide mobility and reduce floor damage.

Hoisting Mechanism:

• Comprises a motor, wire rope, drum, and hook for vertical lifting.
• Available in single or double-girder configurations for varied load capacities.

Trolley and Crab Unit:

• Facilitates lateral movement along the girder.
• Equipped with precision rollers for smooth travel.

Power and Control Systems:

• Electric motors and variable frequency drives (VFDs) ensure energy-efficient operation.
• Pendant or remote controls enable safe and precise handling.

Safety Components:

• Limit switches, overload protection, and emergency stop buttons.
• Anti-sway systems stabilize loads during transit.

Warehouse gantry cranes are ideal for heavy-duty warehouse applications. Below are their critical specifications:

Load Capacity

• Range: 5–500 tons, depending on structural design.
• Applications: Suitable for lifting heavy machinery, steel coils, or bulk containers.

Span

• Standard Span: 10–35 meters, customizable to fit warehouse layouts.
• Wide Span Options: Ideal for large storage yards or manufacturing halls.

Lifting Height

• Adjustable: 6–30 meters, tailored to stacking requirements.
• Deep Hook Approaches: Enables access to low-lying storage areas.

Duty Cycle

• Classification: Ranges from light (A3) to heavy-duty (A7).
• Usage: Determines motor and component durability for continuous operations.

Travel Speed

• Trolley Speed: 20–60 m/min for precise positioning.
• Crane Travel: 10–30 m/min, adjustable via VFDs.

Customization ensures your crane aligns with operational demands and environmental conditions.

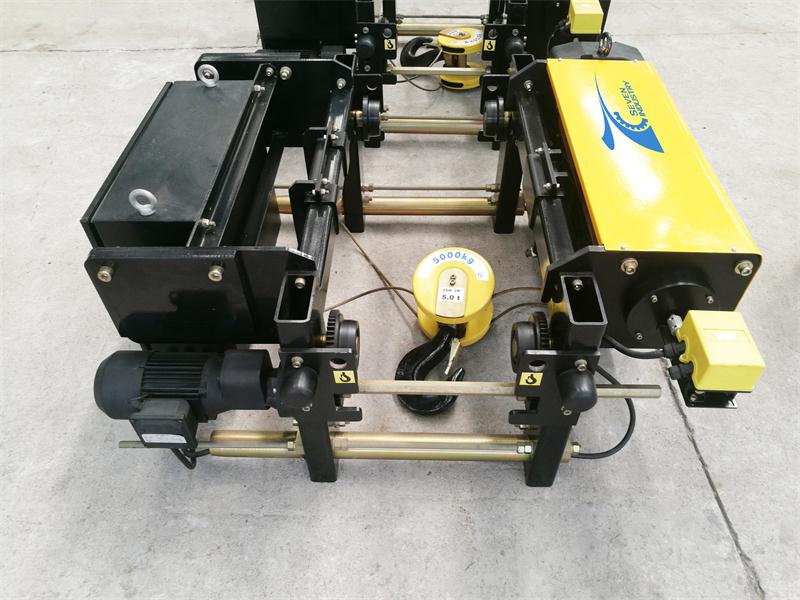

Hoist Options

• Chain Hoists: Compact and cost-effective for light loads (1–10 tons).
• Wire Rope Hoists: High-speed lifting for heavy-duty applications (10–500 tons).
• Explosion-Proof Hoists: Certified for hazardous environments.

Control Systems

• Pendant Control: Manual operation for basic tasks.
• Radio Remote Control: Wireless operation up to 100 meters.
• Automated Systems: PLC integration for synchronized workflows.

Weather Protection Components

• Corrosion-Resistant Coatings: Epoxy or galvanized finishes for humid or coastal areas.
• Enclosed Cabins: Operator cabins with HVAC for extreme temperatures.

Safety Devices

• Overload Limiters: Automatically halt operations upon exceeding capacity.
• Crane Collision Avoidance: Laser sensors and alarms prevent accidents.
• Emergency Stop Buttons: Instantly cut power during malfunctions.

Variable Frequency Drives (VFDs)

• Soft Start/Stop: Reduces mechanical stress on motors.
• Speed Adjustability: Enhances precision in load positioning.

Anti-Collision Systems

• RFID Tagging: Tracks crane movement in multi-crane facilities.
• Zone Control: Restricts crane access to designated areas.

Reliable post-purchase support minimizes downtime and extends crane lifespan.

Filipino working as a call center agent for a Philippine outsourcing firm

Installation Support

• Site Surveys: Engineers assess floor strength, power supply, and layout.
• Turnkey Installation: Includes assembly, wiring, and load testing.

1-Year Warranty

• Coverage: Repairs or replacements for manufacturing defects.
• Extended Warranties: Available for critical components like motors and hoists.

Spare Parts Supply

• Global Inventory: Rapid delivery of gears, brakes, and wire ropes.
• OEM Compatibility: Guaranteed fit and performance.

24/7 Customer Support

• Hotline Assistance: Troubleshooting via phone or video call.
• On-Site Repairs: Certified technicians dispatched within 48 hours.

Warehouse gantry cranes are shipped using a 3-layer protective packaging system:

1. Outer Layer:
   • Wooden Crates: Reinforced with steel straps to withstand rough handling.
2. Middle Layer:
   • Custom-Cut Foam: Cushions motors and electrical components from vibrations.
3. Inner Layer:
   • Waterproof Plastic: Sealed with desiccants to prevent moisture damage.
