Mobile gantry crane

A mobile gantry crane is a type of gantry crane equipped with wheels or casters, allowing it to be moved easily within a workspace. It consists of a horizontal I-beam supported by two vertical legs and can be fitted with manual or electric hoists. These cranes are ideal for lifting and moving materials without the need for a fixed overhead structure.

Key Features:

• Portable and easy to assemble
• Available in various load capacities (from 500 kg to several tons)
• Used for maintenance, material transport, and assembly work

One of the most practical features of modern mobile gantry cranes is their adjustable height. This capability provides several key benefits:

1. Flexibility in Operations: Easily adjust the crane to fit doorways, low ceilings, or taller equipment.
2. Improved Safety: Operators can adapt the crane height to minimize load swing during lifting.
3. Efficient Storage: Height can be lowered for compact storage when not in use.
4. Multi-Application Use: Suitable for a variety of workstations and environments.

Adjustable height cranes are ideal for businesses that work with materials of varying sizes or operate in spaces with height constraints.

To maximize efficiency and safety, follow these guidelines when using a mobile gantry crane indoors:

• Ensure smooth flooring: The crane’s wheels need a flat, even surface for safe movement.
• Use wheel locks: Lock the casters during lifting operations to prevent shifting.
• Mind the ceiling height: Always confirm that there is enough clearance for lifting and load maneuvering.
• Avoid overloading: Stick to the crane’s rated load capacity to prevent tipping or structural failure.
• Plan movement paths: Clear obstacles from the crane’s travel route.

Following these practices ensures the safe and effective use of your mobile gantry crane in enclosed spaces.

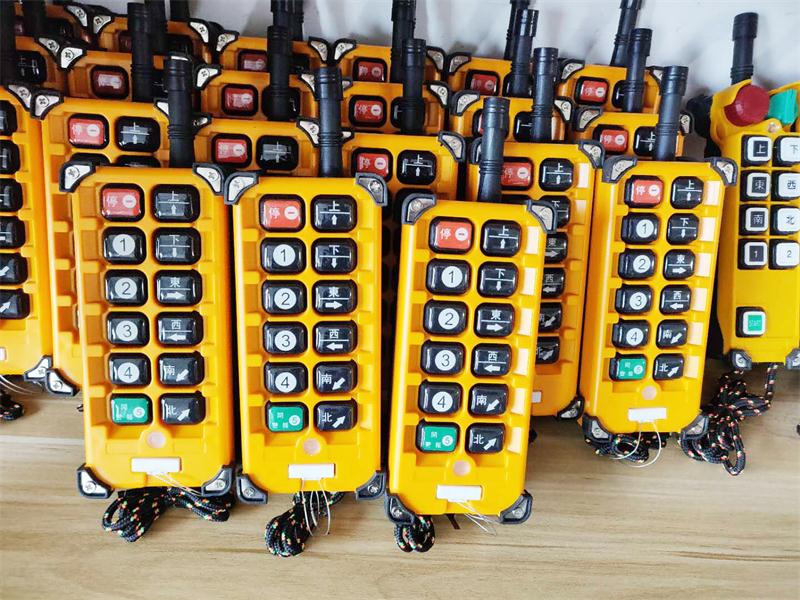

Many modern gantry cranes come equipped with remote control systems for hoisting and trolley movement. These systems offer several advantages:

• Improved Safety: Operators can control the crane from a safe distance.
• Better Visibility: Remote control allows for better positioning by enabling the operator to stand at optimal viewing angles.
• Increased Efficiency: Remote operation can speed up workflow, especially when handling repetitive lifting tasks.

Tips for Remote Use:

• Always check battery levels before use.
• Make sure the signal range covers the entire working area.
• Stop operation immediately if signal interference occurs.

Regular inspection of the crane’s steel structure is essential for safety and longevity. Deformations may occur due to overloading, improper use, or long-term stress.

Inspection Steps:

1. Visual Check: Look for bends, cracks, or twists in the I-beam and support legs.
2. Measure Symmetry: Ensure that both sides of the frame are of equal height and parallel.
3. Check Welds: Inspect welding joints for signs of fatigue or cracking.
4. Listen for Noise: Unusual sounds during operation may indicate stress on deformed components.

If deformation is found, stop using the crane immediately and consult a qualified technician.

Wheels, or casters, are vital for the mobility of a gantry crane. Over time, they may wear out and need replacement.

Replacement Procedure:

1. Ensure Stability: Secure the crane and unload all weight.
2. Lift the Crane: Use jacks or blocks to elevate the frame safely.
3. Remove Old Wheels: Unscrew or unbolt the damaged casters.
4. Install New Casters: Match specifications (size, material, load rating) before installing.
5. Test Movement: Roll the crane in all directions to ensure smooth operation.

Choosing high-quality, heavy-duty casters can significantly improve performance and reduce the risk of future breakdowns.

Selecting the ideal mobile gantry crane for your operation involves balancing multiple factors:

1. Load Capacity: Choose a crane that can safely lift your heaviest regular load.
2. Span and Height: Ensure compatibility with your workspace dimensions and material sizes.
3. Indoor or Outdoor Use: Select materials (e.g., powder-coated steel, galvanized finish) suitable for the environment.
4. Manual vs Electric Hoist: Manual hoists are cost-effective; electric hoists offer speed and convenience.
5. Mobility Needs: Consider the quality of casters and whether you need height adjustability.
6. Budget: Find a model that fits your budget while meeting all safety and functionality requirements.

Working with a reputable supplier can help ensure you get a customized solution that fits your specific operational needs.
