Rail mounted gantry crane

What is a Rail Mounted Gantry Crane?

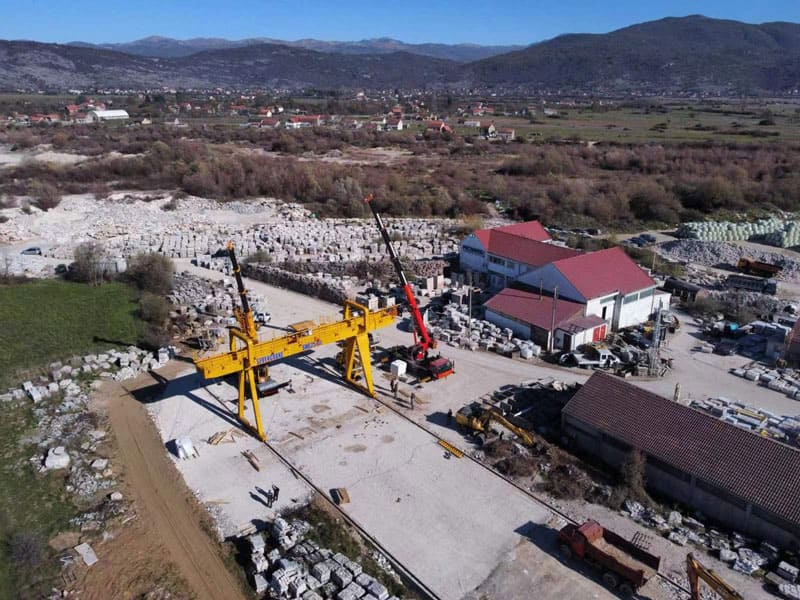

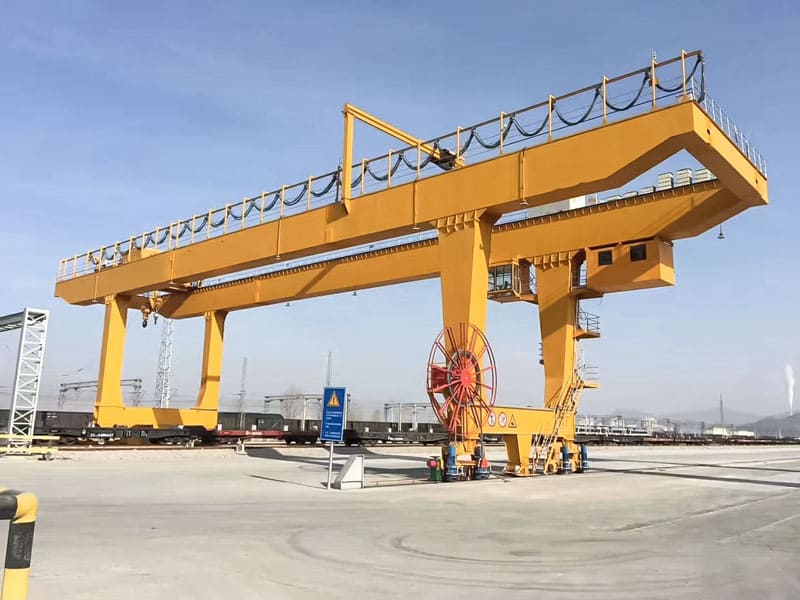

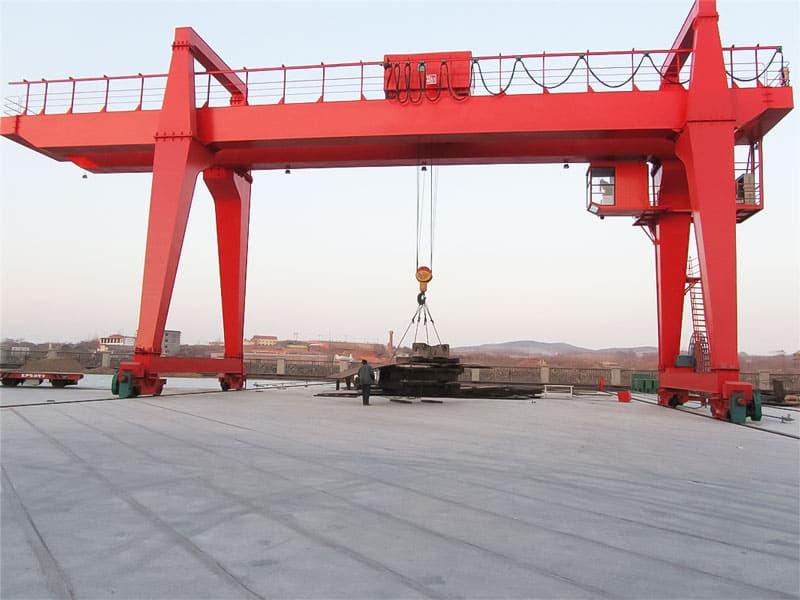

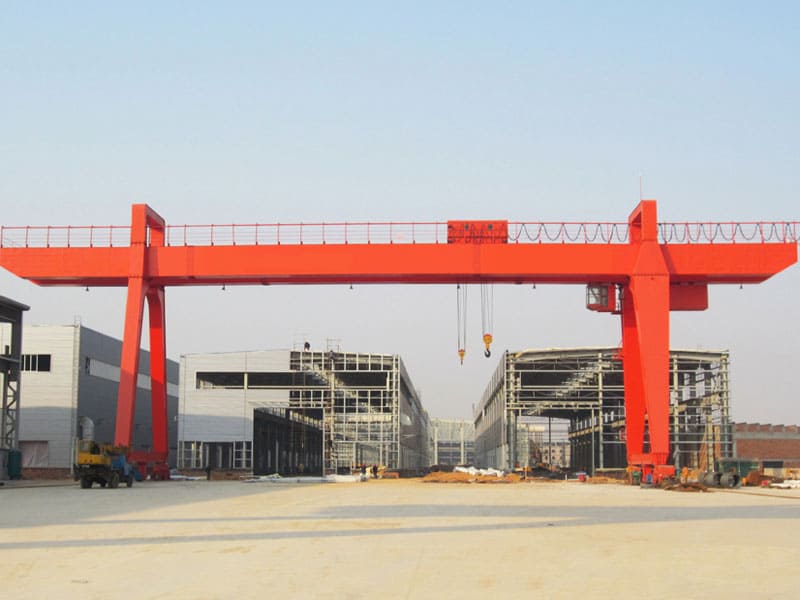

A Rail Mounted Gantry Crane (RMG) is a rail-guided lifting system with a gantry framework spanning between parallel tracks. It features a hoisting mechanism that travels horizontally along the main girder, enabling precise load handling in structured environments like container terminals, rail depots, and steel mills.

Key Components

• Main Girder: Double-box or truss structure for heavy loads (up to 60 tons).
• Legs: Fixed or height-adjustable vertical supports.
• Rail System: Heavy-duty steel tracks (QU80/QU100) for guided movement.
• Hoist System: Electric or hydraulic hoist with wire rope/spreader.
• Control Cabin: Operator station or automated control interface.

Primary Applications

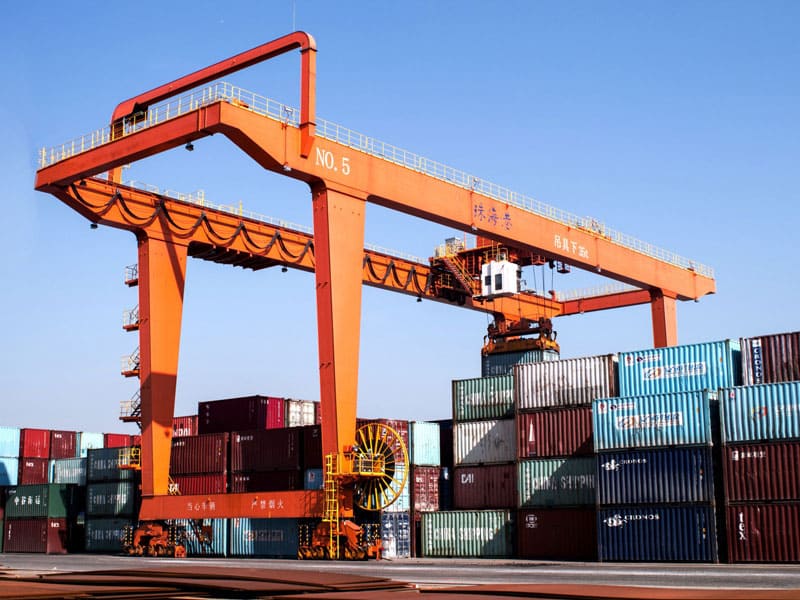

• Container Terminals: Stacking and transferring ISO containers.
• Rail Freight Hubs: Loading/unloading between trains and trucks.
• Steel Mills: Handling coils, plates, and raw materials.
• Bulk Cargo Ports: Managing coal, ore, and grain shipments.

A. Precision and Stability

• Guided Movement: Rails ensure straight-line accuracy (±5mm deviation), critical for stacking containers in high-density yards.
• Anti-Sway Technology: AI-controlled hoists minimize load oscillation during lifts.

B. High Load Capacity and Efficiency

• Heavy-Duty Performance: Lift capacities up to 60 tons (containers) or 30 tons (bulk goods).
• Speed Optimization:
  • Hoisting: 10–30 m/min (empty), 5–15 m/min (loaded).
  • Trolley Travel: 30–60 m/min.

C. Durability in Harsh Environments

• Corrosion Resistance: Hot-dip galvanized steel and epoxy coatings withstand saltwater, humidity, and industrial chemicals.
• Weatherproofing: IP66-rated electrical components operate in rain, snow, or dust.

D. Energy Efficiency

• Regenerative Braking: Converts braking energy into reusable electricity.
• Low-Friction Components: Polyurethane-coated wheels and sealed bearings reduce power consumption.

E. Automation Readiness

• Integration with TOS: Syncs with Terminal Operating Systems for real-time task allocation.
• Remote Monitoring: IoT sensors track performance metrics (e.g., motor temperature, load cycles).

Step 1: Power-Up and System Check

• The crane receives power via conductor bars or cable reels.
• Automated systems run self-diagnostics (e.g., brake tests, limit switch verification).

Step 2: Load Engagement

• Container Handling:
  • Spreaders lock onto container corner castings.
  • Load cells verify weight (<90% of SWL).
• Bulk Material Handling:
  • Grabs or magnets attach to cargo.

Step 3: Horizontal and Vertical Movement

• Trolley Travel: The hoist moves laterally along the girder to position the load.
• Gantry Travel: The entire crane traverses rails to the target location.
• Hoisting/Lowering: A wire rope drum controlled by a frequency-regulated motor adjusts height.

Step 4: Load Release

• Automated spreaders or hooks disengage once the load is secured.

Step 5: Return to Home Position

• The crane resets for the next task, guided by RFID tags or GPS coordinates.

Phase 1: Initial Consultation & Needs Assessment

• Client Input: Load type, capacity, span, duty cycle, automation level.
• Site Survey: Engineers evaluate rail alignment, ground strength, and power supply.

Phase 2: Customization & Specifications

• Design Options:
  • Manual vs. Automated: Choose between cabin-operated or pendent control cranes.
  • Hoist Attachments: Spreaders, grabs, magnets, or hooks.
  • Span & Height: Customize to match rail spacing and stacking needs.

Phase 3: Quotation & Agreement

• Transparent Pricing: Breakdown of equipment, installation, and training costs.
• Contract Terms: Delivery timeline, warranty (1–2 years), and payment milestones.

Phase 4: Manufacturing Process

• Material Procurement: Sourcing ASTM/AISI-certified steel.
• Fabrication: CNC cutting, welding, and anti-corrosion treatment.
• Quality Checks:
  • NDT (Non-Destructive Testing) for welds.
  • Load simulation via FEM analysis.

Phase 5: Delivery & Installation

• Logistics: Flatbed trucks or sea freight for global delivery.
• Installation Steps:
  1. Rail alignment and fastening.
  2. Gantry assembly (bolted or welded).
  3. Electrical and control system integration.

Phase 6: Training & After-Sales Support

• Operator Training: Hands-on sessions for manual control, emergency protocols, and automation software.
• Maintenance Workshops: Teach lubrication schedules and component inspections.

Step 1: Rail Installation

• Subgrade Preparation: Compact soil to 95% Proctor density.
• Concrete Foundation: Pour C35-grade concrete (500mm thickness).
• Rail Fixing: Secure QU100 rails with fishplates and anchor bolts.

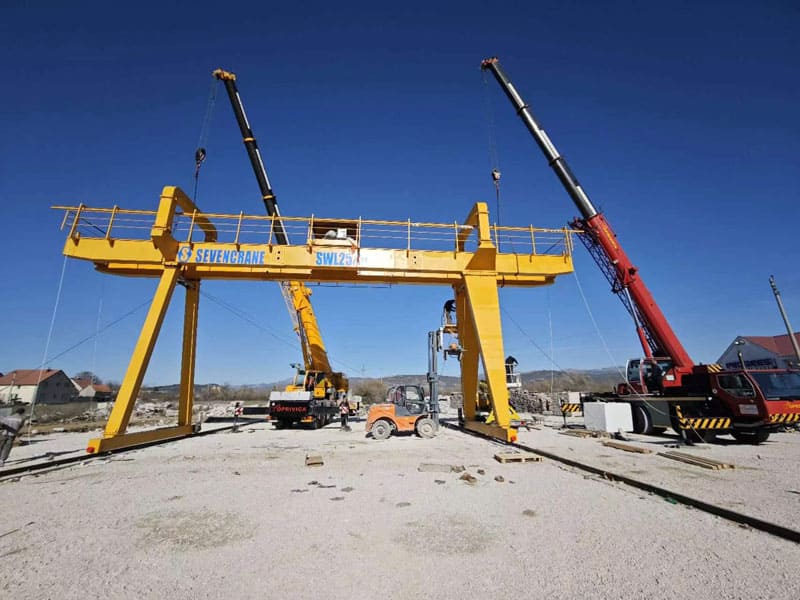

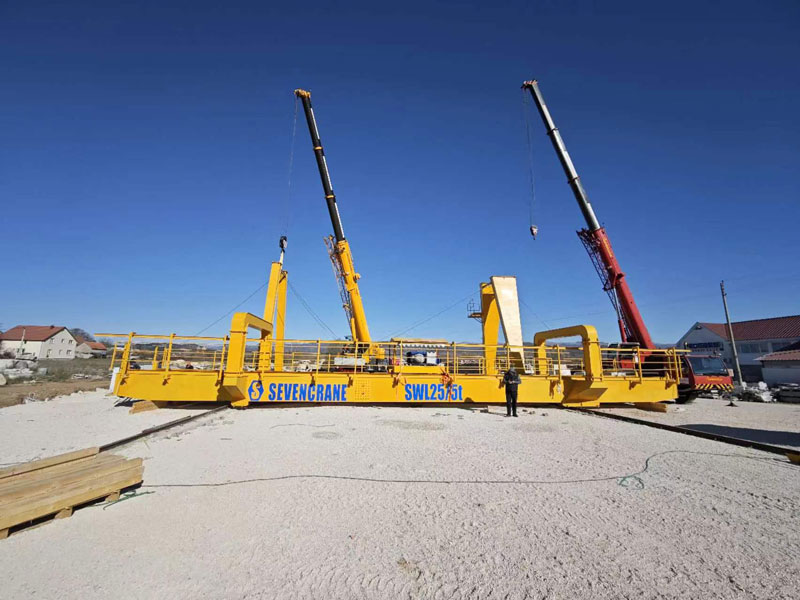

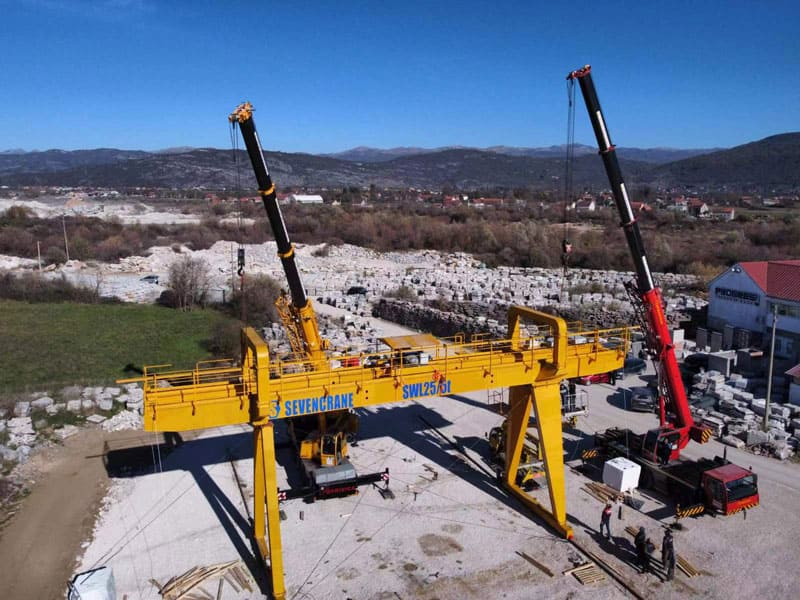

Step 2: Crane Assembly

• Leg Erection: Bolt vertical supports to pre-embedded base plates.
• Girder Mounting: Lift main girder via mobile crane and secure to legs.
• Hoist Installation: Attach trolley and hoist mechanism to the girder.

Step 3: Electrical Setup

• Power Supply: Install conductor bars or cable reels along the rail.
• Control Wiring: Connect PLCs, sensors, and operator interfaces.

Step 4: Testing & Commissioning

• No-Load Test: Run all movements (hoist, trolley, gantry) at 100% speed.
• Load Test:
  • Static Test: 125% SWL for 10 minutes.
  • Dynamic Test: 110% SWL with repeated lifts and stops.
• Safety Checks: Verify limit switches, overload protection, and E-stop functionality.

A. Warranty Coverage

• 1–2 Years: Covers defects in materials and workmanship.
• Extended Plans: Optional coverage for wear parts (wheels, wire ropes).

B. Spare Parts Supply

• Global Network: 24/7 access to OEM parts (gearboxes, brakes, sensors).
• Express Shipping: Critical components delivered within 72 hours.

C. Technical Support

• Hotline Assistance: Troubleshooting via phone/video call.
• On-Site Repairs: Certified technicians dispatched for major failures.

D. Preventive Maintenance Packages

• Basic Plan: Quarterly inspections and lubrication.
• Premium Plan: Includes annual load testing and software updates.

1.Lifting capacity–____t

2.Span(distance between 2 parallel rails)–____m

3.Lifting height–____m

4.Cantilever length–____m

5.Power supply–____V____Hz____Phase

6.Special needs
